MADI Development Board
Boards produced by libmcu are divided into core boards and extension boards.
Several types of core boards are manufactured in the same form factor, 30x21.59mm long. Because data communication and debugger connection are possible through the Type-C USB port of the core board, the core board by itself can fully play the role of a development board.
Extention board is a board to which various sensors and functions are added. A suitable core board can be attached/detached to the extension board.
Schematics for boards can be found here.
Features
2 x 11 pin headers with edge castellations
Serial Wire Debug(SWD) via USB C-type port
Green LED indicator, User button and Reset button
4-layer PCB design for the better signal integrity and power integrity
700mA 3.3V LDO Regulator
Low current consumption
MADI ESP32
Specification
Name |
Desc. |
|---|---|
ESP32-S3FN8 |
Xtensa LX7 240MHz dual cores, 520KB SRAM, WiFi, BLE5 |
Flash |
8MB |
PSRAM |
- |
Interface |
USB Type-C |
LED |
Green user light |
Button |
Reset button, User button |
Battery Charger |
BQ25180YBGR |
Antenna |
2.4GHz Chip antenna |
Operating Temperature |
-30 ° ~ 85 ° C |
Product Size |
30mm x 21.59mm |
VIN Input Voltage |
4.4 ~ 5.5VDC @ 1.1A |
VSYS Output Voltage |
4.4 ~ 4.9VDC @ 1.5A |
VSYS Input Voltage |
1.8 ~ 5.5VDC @ 1.1A |
VBAT Voltage |
3.5 ~ 4.6VDC @ 1.5A |

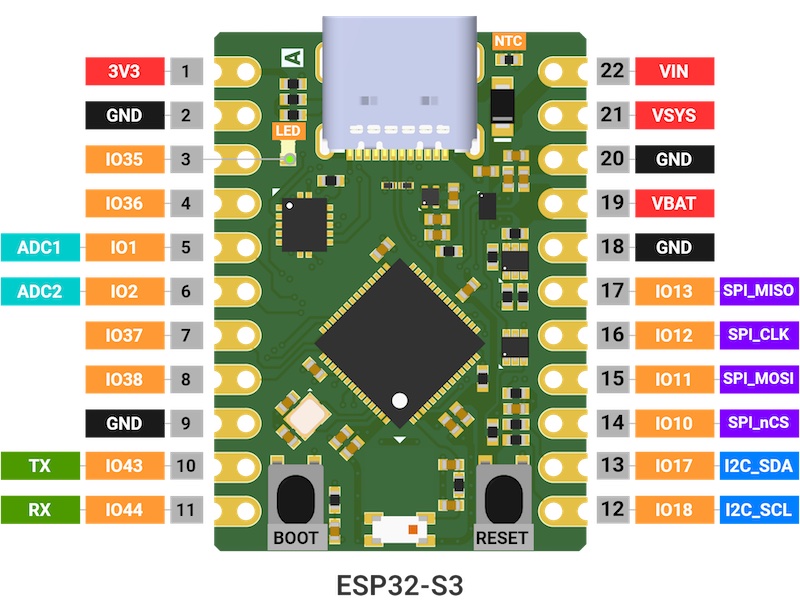

Pinout
USB Type-C Connector
GND |
TX1+ |
TX1- |
VBUS |
CC1 |
D+ |
D- |
SBU1 |
VBUS |
RX2- |
RX2+ |
GND |
|---|---|---|---|---|---|---|---|---|---|---|---|
TDO |
TCLK |
TDI |
TMS |
Pinmap internally connected
Function |
ESP32-S3 |
|---|---|
Green LED |
IO35 |
BQ25180 IRQ |
IO14 |
BQ25180 SDA |
IO17 |
BQ25180 SCL |
IO18 |
EN_VBAT_MON |
IO4 |
VBAT_MON IRQ |
IO7 |
User button |
IO0 |
Current Consumption
Modem Sleep |
Light Sleep |
Deep Sleep |
|---|---|---|
37.6mA |
- |
23.1uA |
Component Quiescent Current
Part |
uA |
|---|---|
BQ25180 |
3uA |
NCP167BMX330TBG |
12uA |
74LVC4066BQ,115 |
0.1uA |
Operating Temperature
Part |
Min. |
Max. |
Unit |
|---|---|---|---|
74LVC4066BQ,115 |
-40 |
125 |
° C |
BQ25180 |
-40 |
125 |
° C |
NCP167BMX330TBG |
-55 |
150 |
° C |
ESP32-S3FN8 |
-40 |
85 |
° C |
2450AT18D0100E |
-40 |
125 |
° C |
KUSBX-SMT-CS2-B30TR |
-30 |
85 |
° C |
MADI nRF52
Specification
Name |
Desc. |
|---|---|
nRF52840-QIAA-R7 |
Cortex-M4F 64MHz, 256kB RAM, BLE5 |
Flash |
1MB + 2MB SPI NOR Flash |
Interface |
USB Type-C |
LED |
Green user light |
Button |
Reset button, User button |
Battery Charger |
BQ25180YBGR |
Antenna |
2.4GHz Chip antenna |
Operating Temperature |
-30 ° ~ 85 ° C |
Product Size |
30mm x 21.59mm |
VIN Input Voltage |
4.4 ~ 5.5VDC @ 1.1A |
VSYS Output Voltage |
4.4 ~ 4.9VDC @ 1.5A |
VSYS Input Voltage |
1.8 ~ 5.5VDC @ 1.1A |
VBAT Voltage |
3.5 ~ 4.6VDC @ 1.5A |

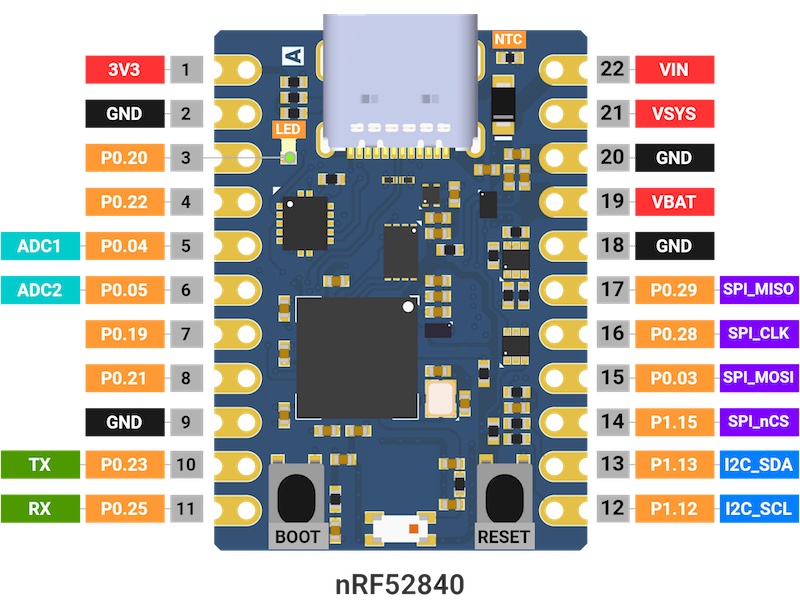

Pinout
Pinmap internally connected
Function |
nRF52840 |
|---|---|
Green LED |
P0.20 |
BQ25180 IRQ |
P0.26 |
BQ25180 SDA |
P1.13 |
BQ25180 SCL |
P1.12 |
EN_VBAT_MON |
P0.27 |
VBAT_MON |
P0.31 |
User button |
P1.07 |
Current Consumption
Run |
Sleep with System ON |
Sleep with System OFF |
|---|---|---|
27.1mA |
17.55uA |
15.6uA |
Component Quiescent Current
Part |
uA |
|---|---|
BQ25180 |
3uA |
NCP167BMX330TBG |
12uA |
74LVC4066BQ,115 |
0.1uA |
MX25V1635F |
9uA / 0.1A(Deep power-down) |
Operating Temperature
Part |
Min. |
Max. |
Unit |
|---|---|---|---|
74LVC4066BQ,115 |
-40 |
125 |
° C |
BQ25180 |
-40 |
125 |
° C |
NCP167BMX330TBG |
-55 |
150 |
° C |
nRF52840-QIAA |
-40 |
85 |
° C |
2450AT18D0100E |
-40 |
125 |
° C |
MX25V1635F |
-40 |
85 |
° C |
KUSBX-SMT-CS2-B30TR |
-30 |
85 |
° C |
MADI STM32
Specification
Name |
Desc. |
|---|---|
STM32G473CEU6 |
Cortex-M4F 170MHz, 128kB RAM |
Flash |
512KB + 2MB SPI NOR Flash |
Interface |
USB Type-C |
LED |
Green user light |
Button |
Reset button, User button |
Battery Charger |
BQ25180YBGR |
Operating Temperature |
-30 ° ~ 85 ° C |
Product Size |
30mm x 21.59mm |
VIN Input Voltage |
4.4 ~ 5.5VDC @ 1.1A |
VSYS Output Voltage |
4.4 ~ 4.9VDC @ 1.5A |
VSYS Input Voltage |
1.8 ~ 5.5VDC @ 1.1A |
VBAT Voltage |
3.5 ~ 4.6VDC @ 1.5A |

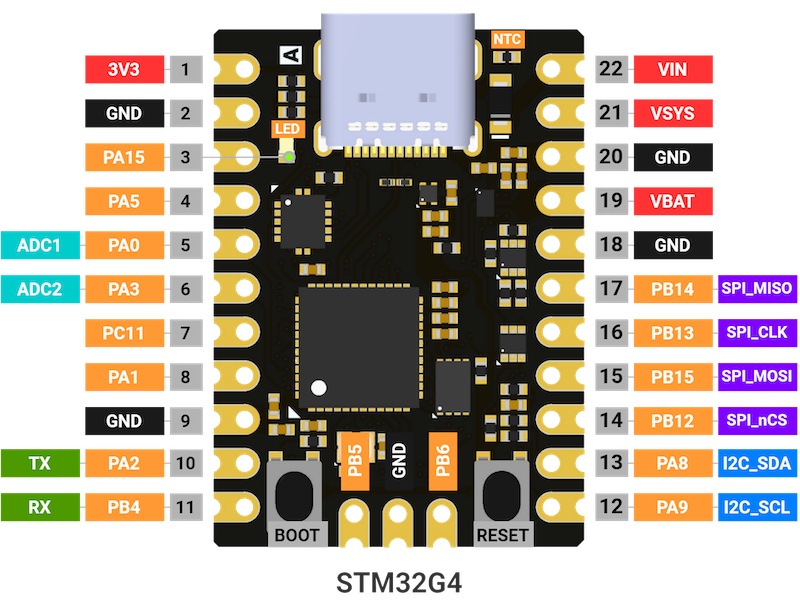

Pinout
Pinmap internally connected
Function |
STM32G4 |
|---|---|
Green LED |
PA.15 |
BQ25180 IRQ |
PC.6 |
BQ25180 SDA |
PA.8 |
BQ25180 SCL |
PA.9 |
EN_VBAT_MON |
PB.2 |
VBAT_MON |
PC.4 |
User button |
PB.8 |
Current Consumption
Run |
Sleep |
Stop |
Standby |
|---|---|---|---|
27.1mA |
8.1mA |
96.7uA |
15.38uA |
Component Quiescent Current
Part |
uA |
|---|---|
BQ25180 |
3uA |
NCP167BMX330TBG |
12uA |
74LVC4066BQ,115 |
0.1uA |
MX25V1635F |
9uA / 0.1A(Deep power-down) |
Operating Temperature
Part |
Min. |
Max. |
Unit |
|---|---|---|---|
74LVC4066BQ,115 |
-40 |
125 |
° C |
BQ25180 |
-40 |
125 |
° C |
NCP167BMX330TBG |
-55 |
150 |
° C |
STM32G473CEU6 |
-40 |
85 |
° C |
MX25V1635F |
-40 |
85 |
° C |
KUSBX-SMT-CS2-B30TR |
-30 |
85 |
° C |
